Essential Follow-up Data
|Top Previous Next|

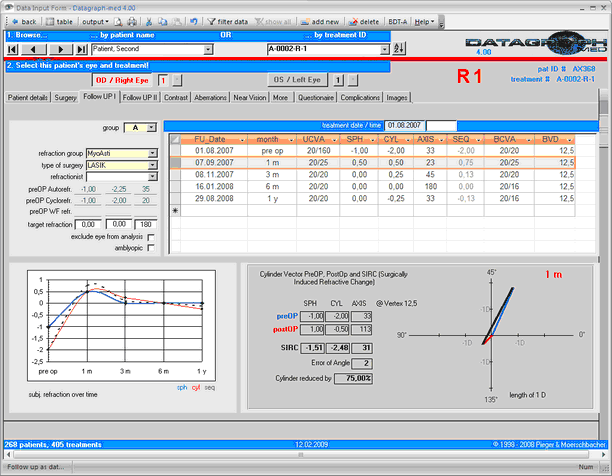

Most of your data entry will be done on the 'Follow up I' tab of the data entry form.
Most Graphs will use pre and postOP subjective refraction (sph, cyl and axis), UCVA and BCVA, 'Target Refraction' (which will be used to calculate the 'Attempted Correction'). For that reason at least these values must be entered.
Entering the date of follow up ('FU_Date') will be used to calculate the follow up visit label ('month') expressing the time difference between treatment and examination date. The follow up date is optional however and you may directly select the follow up label in the month column. Try to use the 1-3-6-12 month grid whenever possible as most graphs will take these time intervals by default. If needed change the follow up visit label manually. For example you may want to store 4 month visit data as '3 m' in case the patient missed his 3 month visit. If you have two or more exams in the same month you may use the 'extra visit' labels further down on the drop down list.
Please enter a '0' in the SPH and CYL column if the patient is spherical or plano (also in the laser setting cyl and attempted cyl fields) as otherwise the spherical equivalents can not be calculated and this treatment will not be included in graphs. Using the 'Tab' key when going from field to field will fill out the CYL and AXIS field automatically. It is important to understand that 'empty' is not the same as 'zero'. Plano is to be entered as 0, 0, 180 for SPH, CYL and AXIS for example.
Datagraph-med accepts both, plus and minus cylinder notation and converts it internally to minus cylinder.
